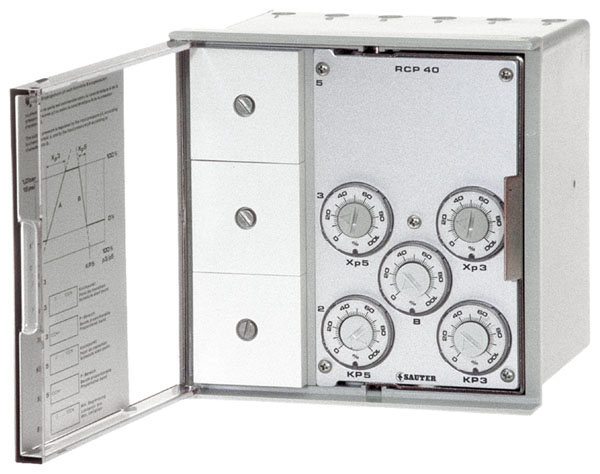

Damper control unit

RCP 40

How energy efficiency is improved
Enables the implementation of individually optimised controls for maximum efficiency in pneumatic installations.

Areas of application
Activation of a temperature-dependent outside-air/return-air damper in combination with a transducer in ventilation and air-conditioning equipment. Control of the mixed-air temperature with two separate transducers, e.g. in winter operating mode.

Properties

  • Control of fresh air damper, depending on trapezium diagram for the outdoor temperature
  • Housing, rack and front doors made of thermoplastic
  • Suitable for wall or panel mounting
  • Functional description and commissioning help inserted in front door
  • Front panel with adjusters and 3 covered recesses for plug-in pressure gauge (XMP) making commissioning easier
  • All settings very easy to make with a coin and % scale
  • M4 measuring connections, control action adjustable (delivered with control action B)
  • Compressed-air connections Rp 1/8" female thread
  • Complies with directive 97/23/EC Art. 3.3 on pressure equipment

Technical description
  • Supply pressure 1.3 bar ± 0.1
  • Easily accessible adjusters for KP3+5 (schedule start point), XP3+5 (P range)
  • Inputs for:
    • control action
  • Outputs for:
    • output pressure for damper drive

Features
