P+PI cascade controller

RCP 30, 31

How energy efficiency is improved
Enables the implementation of individually optimised controls for maximum efficiency in pneumatic installations.

Areas of application
Room-temperature control (P) with supply-air temperature as auxiliary control loop (PI) in ventilation and air-conditioning equipment. Pneumatic control of temperature, pressure, differential pressure, humidity and flow rate in combination with appropriate transducers.

Properties

  • P+PI cascade controller
  • P+PI cascade schedule controller
  • Controllers can be used universally for the most varied of applications
  • Housing, rack and front doors made of thermoplastic
  • Suitable for wall or panel mounting
  • Functional description and commissioning help inserted in front door

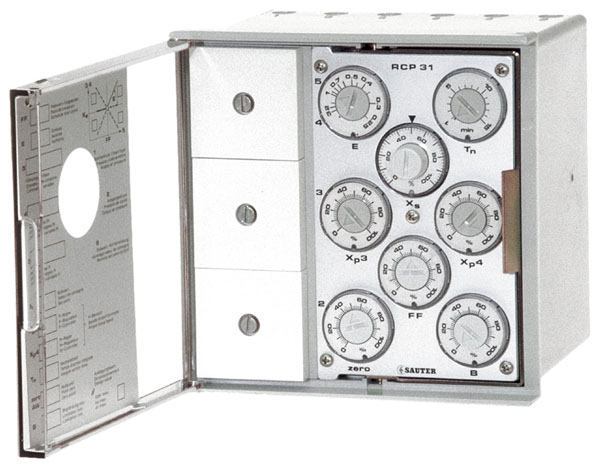

  • Front panel with adjusters and 3 covered recesses for plug-in pressure gauge (XMP) making commissioning easier
  • Setpoint adjuster XS adjustable manually with scales for all Centair measuring ranges
  • All settings very easy to make with a coin and % scale
  • M4 measuring connections, control action adjustable (delivered with control action B)
  • Compressed-air connections Rp 1/8" female thread
  • Complies with directive 97/23/EC Art. 3.3 on pressure equipment

Technical description
  • Supply pressure 1.3 bar ± 0.1
  • Easily accessible adjusters for XS (setpoint), X P4 (P range), Tn (reset time), E (influence) and FF (schedule start point)
  • Inputs for:
    • remote setpoint adjustment
    • main controlled variable
    • auxiliary controlled variable
    • command variable
  • Outputs for:
    • output pressure for dampers or actuator

Features

 Product search
Types
RCP30F001
Pneum.controller;centair;P+PI cascade;fixed value
RCP31F001
Pneum.controller;centair;P+PI cascade;fixed+schedul
