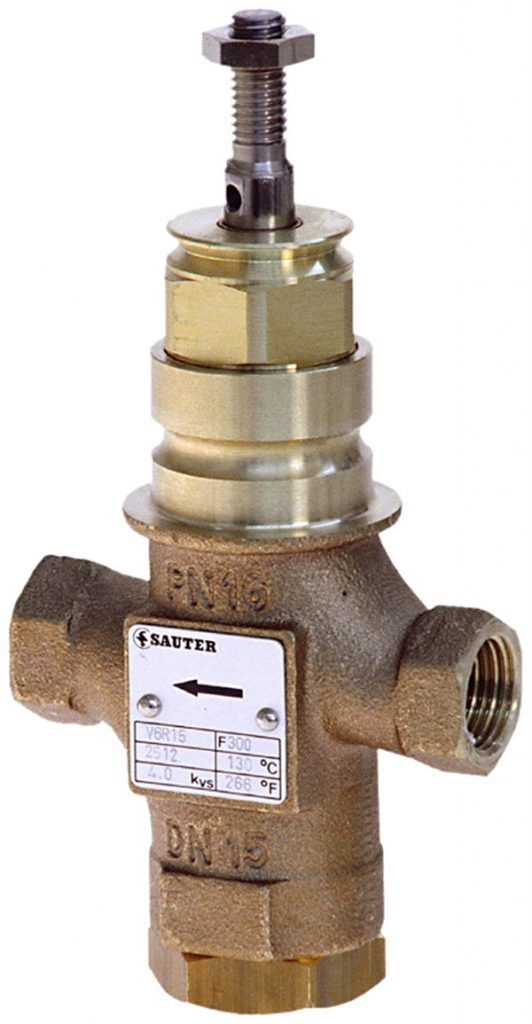

2-way valve with female thread, PN 16 (el.)

V6R

How energy efficiency is improved

Efficiency means precise and reliable control


Features

  • Regulating valve free of silicone grease with female thread DIN EN ISO 228-1 G for the control of cold/hot water in closed and open circuits

  • In combination with valve actuators AVM 322, AVM 322S, AVM 234S, AVF 234S

  • Equal-percentage or linear characteristic, can be set with SUT valve actuators (SAUTER Universal Technology) to linear or equal-percentage

  • Control passage A–AB closed when the spindle is moved out

  • Closing procedure against the pressure or with the pressure

  • Valve body and seat made of gunmetal

  • Stainless-steel spindle

  • Stuffing box made of brass with wiper ring and double O-ring seal made of EPDM

 Product search
Types
V6R15F200
Through valve, threaded;PN16;DN15;Kvs=4.0;lin
V6R15F300
Through valve, threaded;PN16;DN15;Kvs=4.0;=%
V6R15F310
Through valve, threaded;PN16;DN15;Kvs=2.5;=%
V6R15F320
Through valve, threaded;PN16;DN15;Kvs=1.6;=%
V6R15F330
Through valve, threaded;PN16;DN15;Kvs=1.0;=%
V6R15F340
Through valve, threaded;PN16;DN15;Kvs=.63;=%
V6R15F350
Through valve, threaded;PN16;DN15;Kvs=0.4;=%
V6R25F200
Through valve, threaded;PN16;DN25;Kvs=10;lin
V6R25F210
Through valve, threaded;PN16;DN25;Kvs=6.3;lin
V6R25F300
Through valve, threaded;PN16;DN25;Kvs=10;=%
V6R25F310
Through valve, threaded;PN16;DN25;Kvs=6.3;=%
V6R40F200
Through valve, threaded;PN16;DN40;Kvs=25;lin
V6R40F210
Through valve, threaded;PN16;DN40;Kvs=16;lin
V6R40F300
Through valve, threaded;PN16;DN40;Kvs=25;lin
V6R40F310
Through valve, threaded;PN16;DN40;Kvs=16;lin
V6R50F200
Through valve, threaded;PN16;DN50;Kvs=35;lin
V6R50F300
Through valve, threaded;PN16;DN50;Kvs=35;=%
