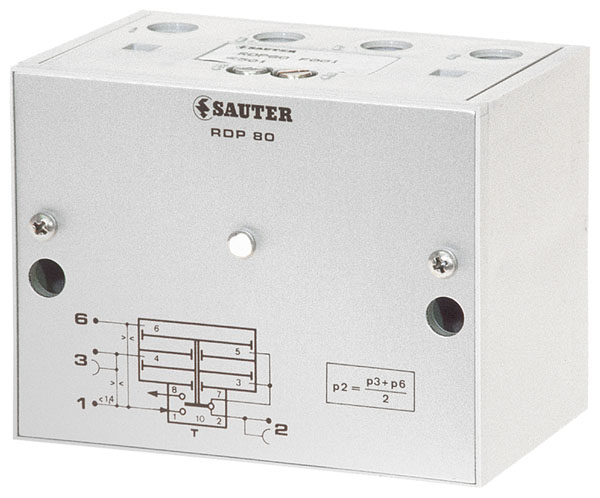

Averaging relay

Areas of application
Formation of the average of two pneumatic input signals in pneumatic control systems.


Properties

• 2 input signals are added together and averaged in the relay
• Controller front panel is printed with circuit diagram for rapid identification of function
• Thermoplastic housing suitable for wall or top-hat rail mounting
• Compressed air connections with Rp 1/8″ female thread
• Complies with directive 97/23/EC Art. 3.3 on pressure equipment

Technical description

• Supply pressure 1.3 bar ± 0.1
• 2 input signals
• 1 output signal
